Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating

Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating

$26.38
Skip to product information
Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
  • Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
  • Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
  • Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
  • Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
  • Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
  • Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
  • Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
  • Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
  • Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
  • Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating
Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating

Recoil BBPG4 Bus Bar Positive and Negative 4 x 5/16”(M8) Studs and 4 x #8 Screw Terminals Power Distribution Block Busbar with Ring Terminals 150 Amp Rating

$26.38

About This

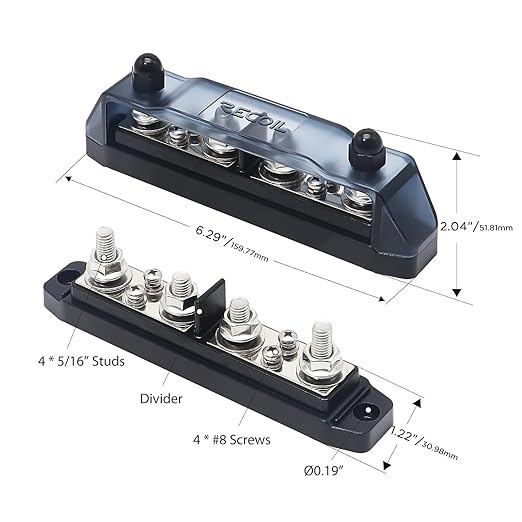

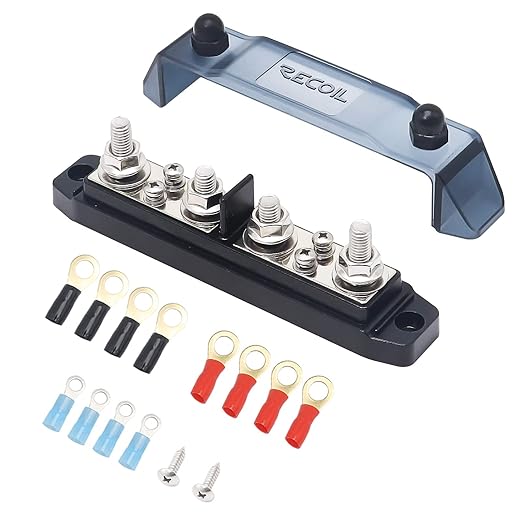

  • Eight connections with 4 x 5/16" stainless steel studs and 4 x #8 stainless steel screws. Comes with 4 x 8AWG 5/16”, 4 x 10AWG 5/16”and 4 x #8 insulated ring terminals

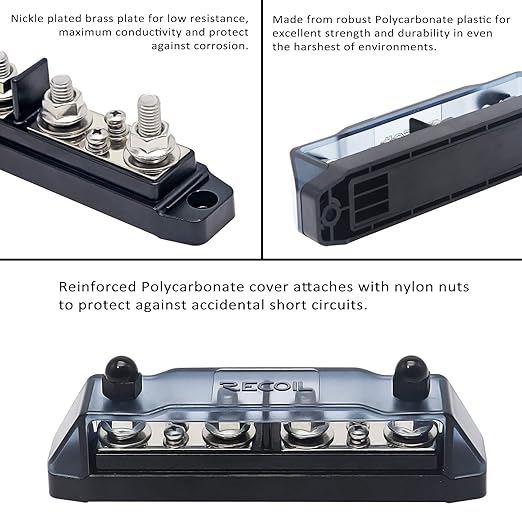

  • Reinforced Polycarbonate cover attaches with nylon nuts to protect against accidental short circuits

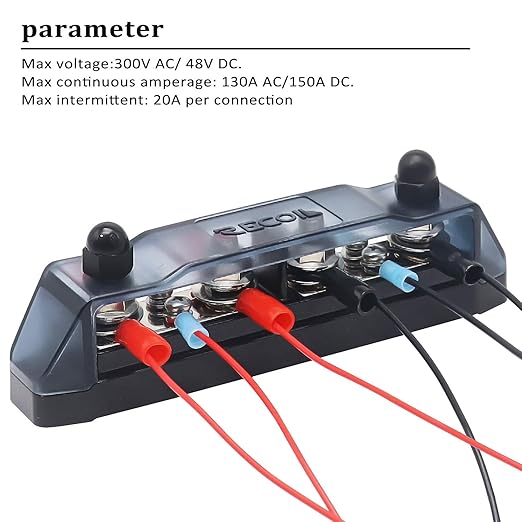

  • Max voltage:300V AC/ 48V DC. Max continuous amperage: 130A AC/150A DC
  • Nickle plated brass plate for low resistance, maximum conductivity and protect against corrosion. Made from robust Polycarbonate plastic for excellent strength and durability in even the harshest of environments

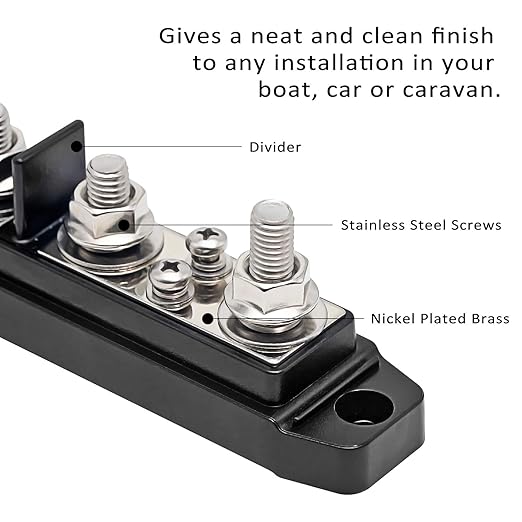

  • Gives a neat and clean finish to any installation in your boat, car or caravan

Overview

  • Current Rating : 150 Amps
  • Item Pitch : 0.25 Inches
  • Gauge : 8.0
  • Connector Type : Screw
  • Number Of Contacts : 8
  • Mounting Type : Surface Mount
  • Material : Brass, Plastic, Polycarbonate (PC), Stainless Steel
  • Brand : RECOIL
  • Voltage : 300 Volts
  • Number Of Poles : 8
