$14.83

About This

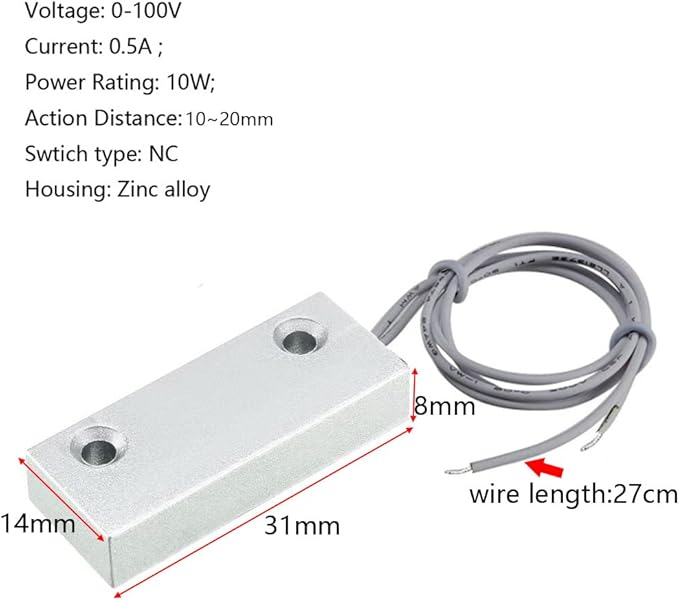

  • [Specification] - Current: 0.5A ; Voltage: 0-100V ; Power Rating: 10W; Action Distance: 10~20mm.

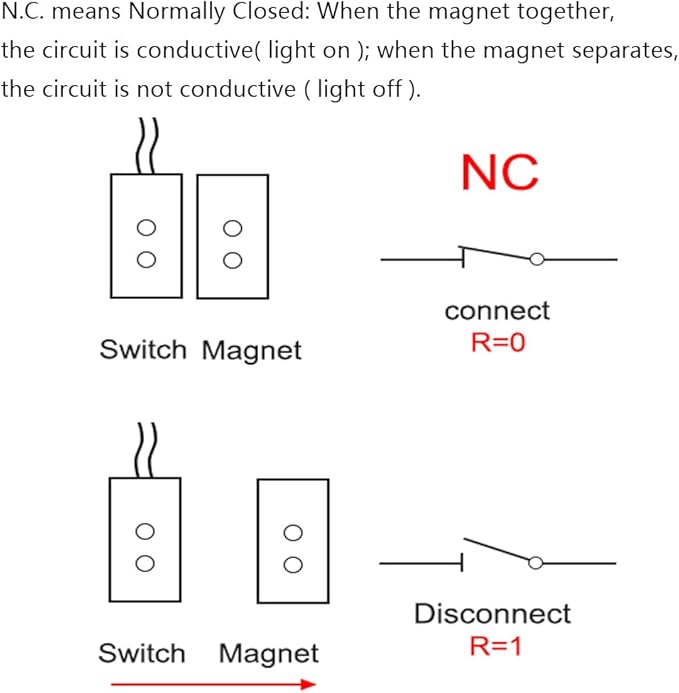

  • [N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). . When make order, pls check carefully!

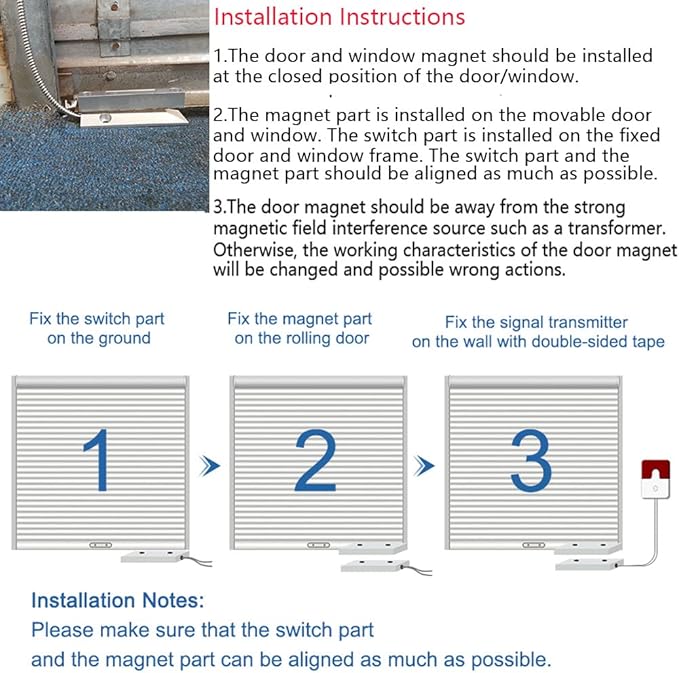

  • [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.

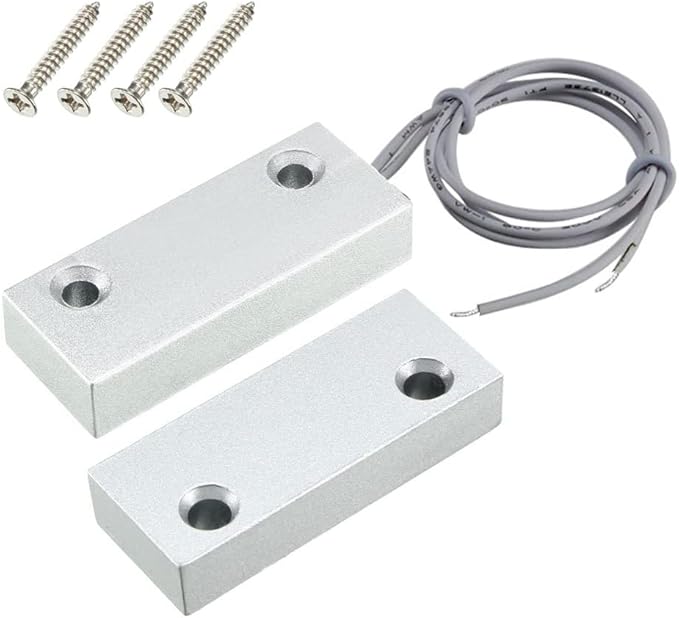

  • [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance.
  • Customer satisfaction is our greatest pursuit, if you found that our products do not work or quality not as good as you think, please contact us without hesitation.

Overview

  • Operation Mode : Off
  • Current Rating : 0.5 Amps
  • Operating Voltage : 100 Volts
  • Connector Type : Screw
  • Brand : Gebildet
  • Terminal : Screw
  • Circuit Type : 1-way
  • Actuator Type : Push Button
  • Contact Material : Metal
  • International Protection Rating : IP65
  • Switch Type Reed Switch : Material Zinc
  • : Switch Type Reed Switch
  • : Material Zinc
  • Mounting Type Through Hole Mount : Specification Met Ip65
  • : Mounting Type Through Hole Mount
  • : Specification Met Ip65
