About This

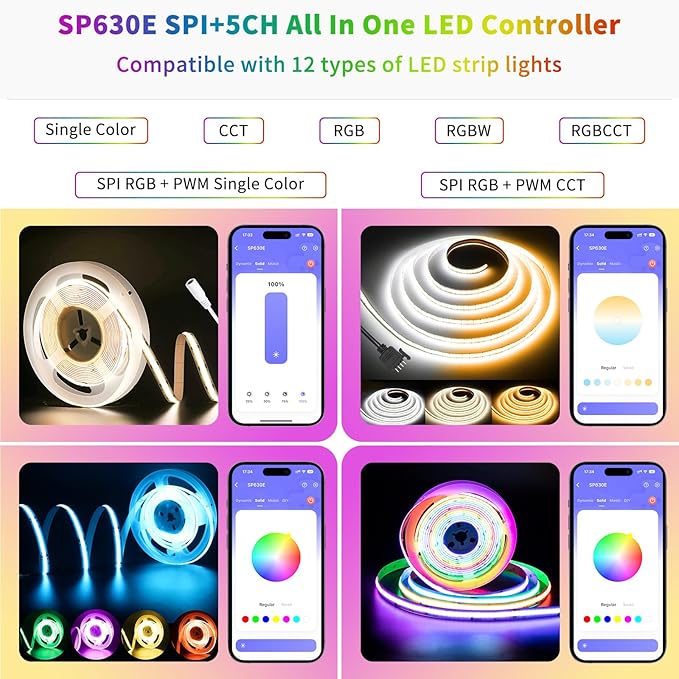

Support PWM LED Strip: PWM LED strip without smart IC, such as PAUTIX 2-Pin 2000K/2700K/3000K/4000K/5000K/6000K/6500K COB strip, 3-Pin CCT 2700K-6500K tunable COB LED strip, 4-Pin RGB COB LED Light strip, 5-Pin RGBW COB LED strip, 6-Pin RGB+CCT COB LED strip.
Addressable SPI LED Strip with IC: It Supports Addressable IC Chip LED Strip.SPI TTL IC Chip LED strip .3pin(V+ Data GND) or 4pin(V+ Data Backup GND) .For example WS2811 WS2812B WS2813 WS2814 WS2815 SK6812 LB1934 IC chipW etc single RGB color,RGB, ,RGBCCT addressable LED strip. Support PAUTIX RGBIC COB LED Strip (ASIN: B0BN5N3R82).

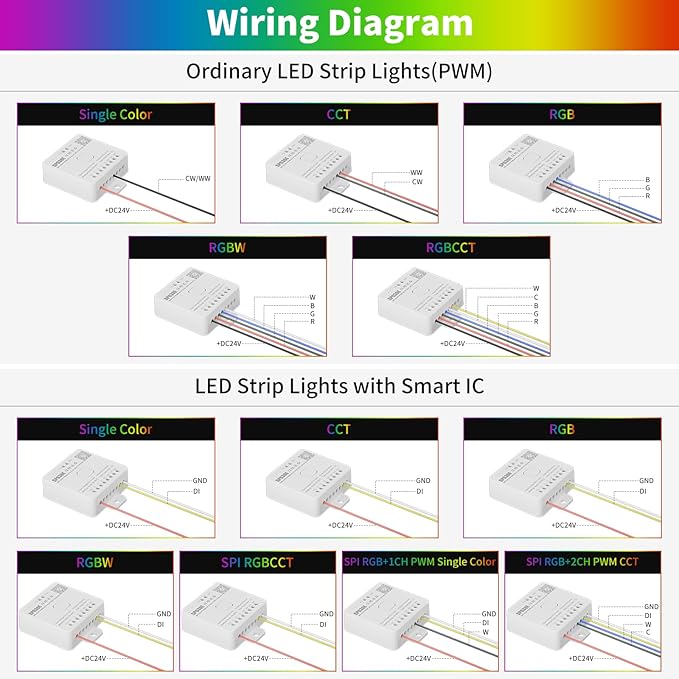

Mini LED Strip Light Controller: It Supports SPI+PWM LED Strip at the same time.For example you could controller WS2812B IC RGB LED strip + FCOB 3000K single color no IC strip or WS2812B IC RGB LED strip + FCOB CCT no IC strip, and is applicable to multiple light strips. A led controller can meet your various needs.
Music Method: Music lighting effects. 3 kinds of collection methods, mobile phone microphone, player streaming, Built-in high-sensitivity microphone, The light strip beats in real time with the rhythm of music.
Color Calibration. When the app color is inconsistent with the color of the LED strip, the color can be calibrated to make it consistent.
DIY Function: You can make your own lighting effects (custom color, dynamic mode, speed, sensitivity) for the LED strip. Three APP operation interfaces, static mode, dynamic mode, music mode.
Timing Function: You could set up to 5 timers. With memory function in case of power-down.

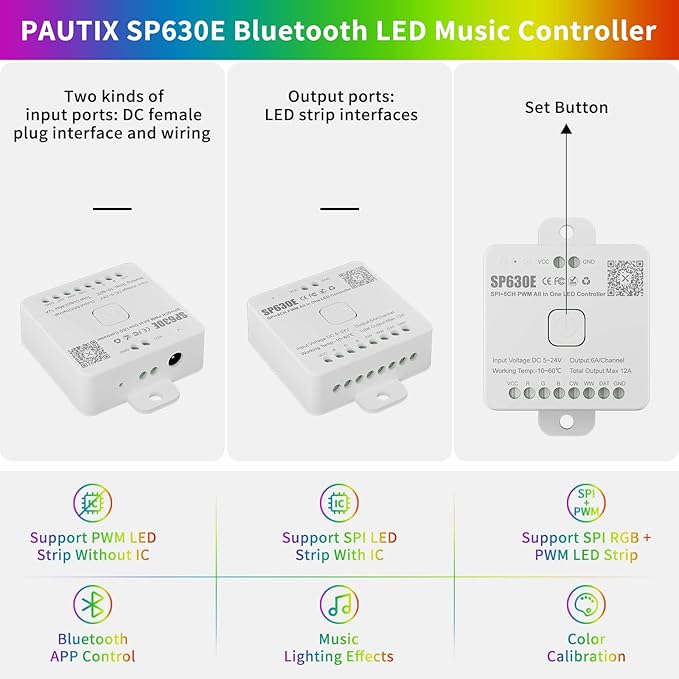

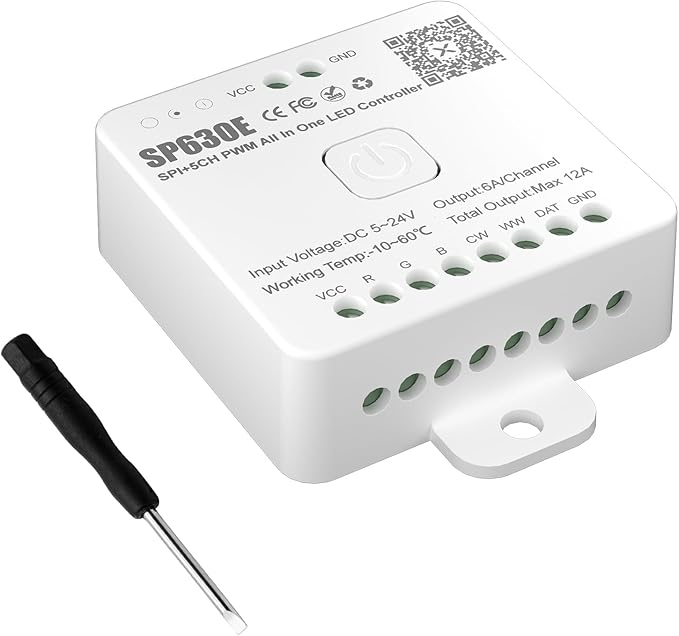

Working Voltage: DC5-24V. Output 6A per channel, total 12A. 5.5mmx2.1mm DC power jack.
