About This

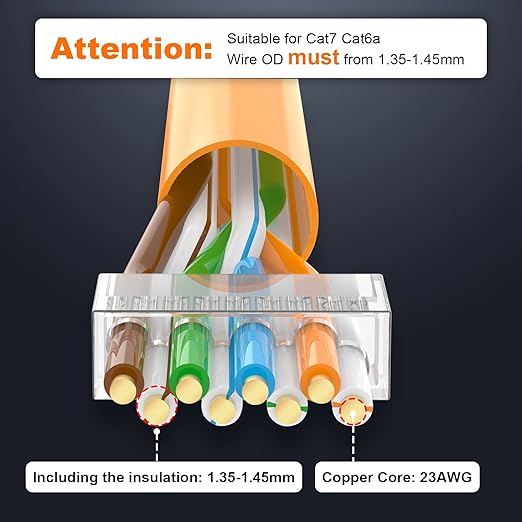

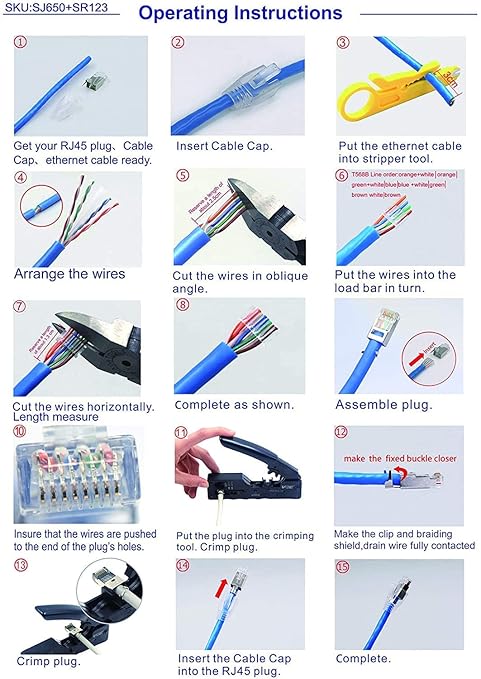

CAT7/6A CONNECTORS NON-PASS-THRU: Suitable for thick CAT7/CAT6A solid or stranded STP / FTP cable (23AWG) with wire core diameter 1.35 mm-1.45 mm. It's easier to insert the wires through the connector with the help of the attached load bars. The wire OD of cables with the same AWG specifications may vary depending on the manufacturer. Please ensure wire OD MUST meet the requirements. If the wire OD is too thick, the core wire cannot be inserted into the plug, and if the wire OD is too thin, the core wire will move in the Load bar, resulting in unsuccessful crimping. (Flat cable not supported due to difficult installation)

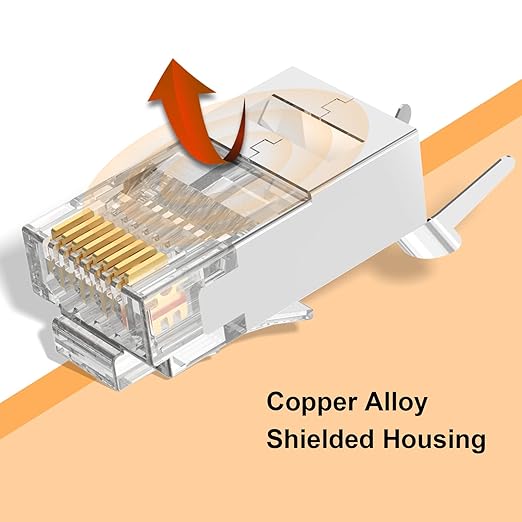

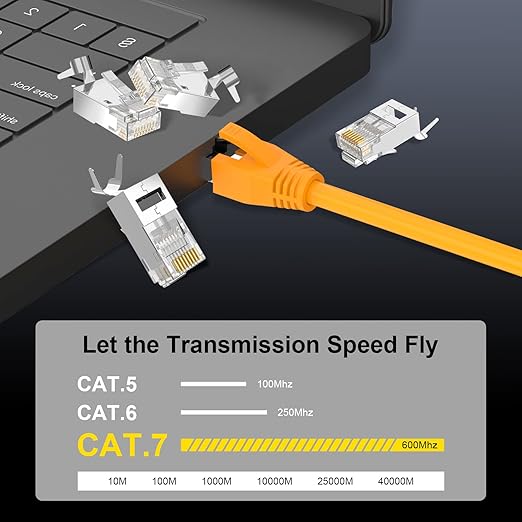

10 Gbps TRANSMISSION SPEED: Gold-plated contacts are anti-oxidational and durable. Metal-shielded shell eliminates cross-talk and prevents electromagnetic interference (EMI), ensuring a more stable connection.
LONG SERVICE LIFE: With complimentary ethernet RJ45 cable boots that effectively extend the service life of your cables and rj45 modular connector by preventing dust and water from entering the plugs. The cable boots are used for LAN cable with wire OD 7~8mm.
WIDELY USED: Suitable for devices with standard RJ45 ports such as PC, Hub, Router, Switch, etc. The UL-Listed RJ45 shielded connectors are flame-retardant and safer to use at home, in the office, or in the industry.

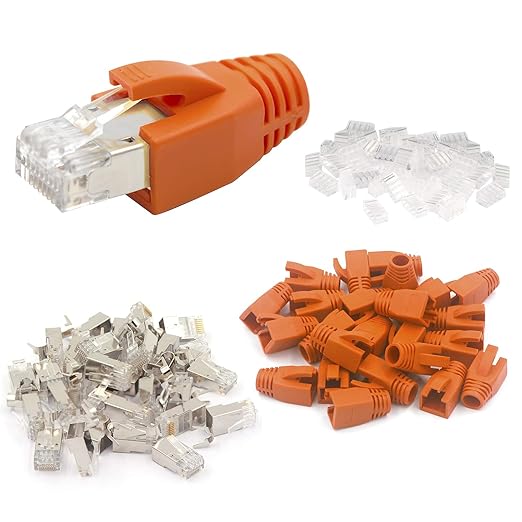

PACKAGE & AFTER-SALE SERVICE: 30 x Cat7/Cat6A cable connector + 30 x Load Bar + 30 x Cable Boot. Provide an 18-month warranty for any quality problems, just use it without concern.
