JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets

JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets

$74.23
Skip to product information
JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
  • JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets
JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets

JRready ST6385-12-50 M81824/1 Series Waterproof Heat-Shrinkable Splice Yellow Butt Splice Connectors 16-12 AWG (M81824/1-3), Wire-to-Wire Splicing with Alternative Temp. PVDF/PE Tubes 50Sets

$74.23

About This

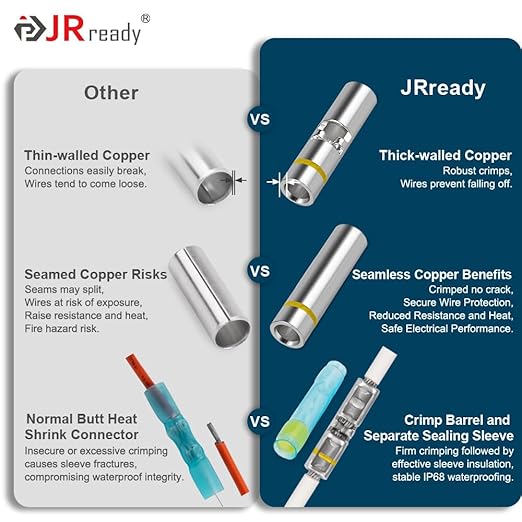

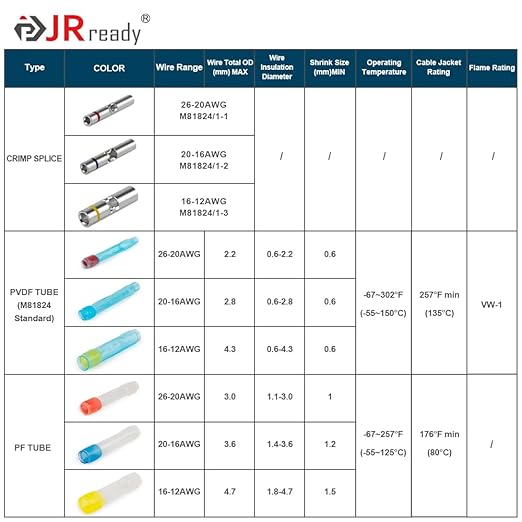

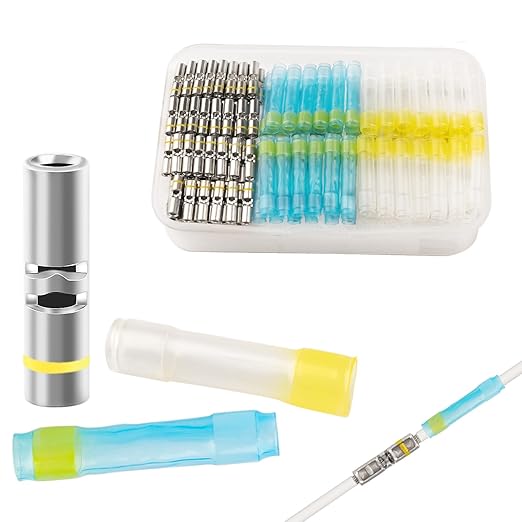

  • Durably Built: This butt splice connectors kit includes 50pcs of Crimp Connectors suitable for 16-12 AWG (M81824/1-3). They are crafted from robust seamless copper tubes to ensure secure, crack-free crimping, and feature a clear window design for easy wire inspection.

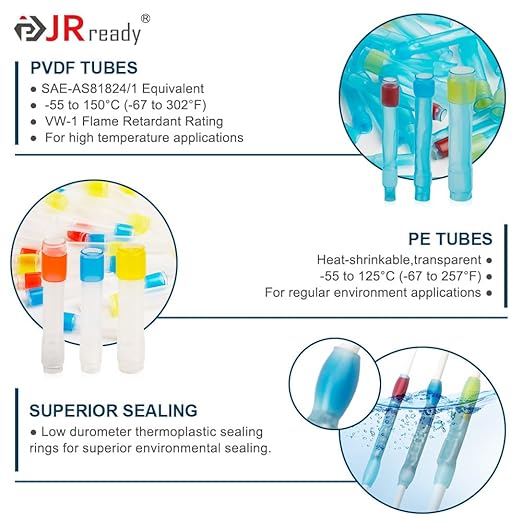

  • High-Temperature Insulation: The PVDF Insulation Sleeve, equivalent to M81824/1,can withstand temperatures ranging from -67°F to 302°F (-55°C to 150°C).Transparent and heat-shrinkable, it facilitates effortless terminal observation. It features hot melt adhesive ends for IP68 waterproof sealing, and the PVDF Insulation Sleeve boasts a VW-1 flame rating.Suitable for cable jacket applications with a maximum temperature resistance of 275°F（135°C).
  • PE Insulation Sleeve: Additionally, we provide 50pcs PE Insulation Sleeves suitable for temperatures from -67°F to 257°F (-55°C to 125°C). These sleeves offer reliable protection,suitable for cable jacket applications with a maximum temperature resistance of 176°F（80°C).

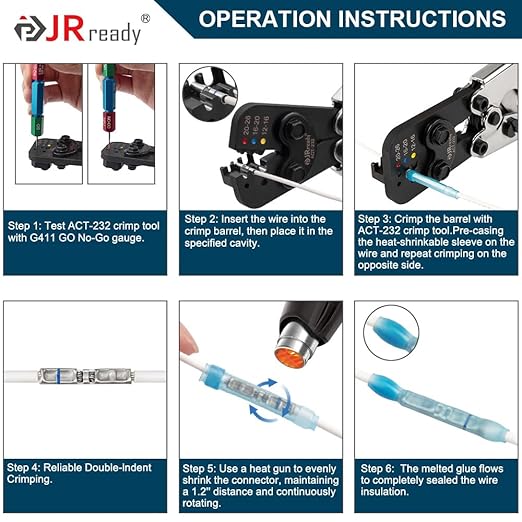

  • Specialized Crimp Tool: The ACT-232 hand crimp tool(Equivalent to TE's AD-1377), is ideal for environmental sealing splices (sizes 12, 16, and 20). Its double-indent crimping ensures secure connections without wire slippage, making it a reliable choice for your crimping needs.
  • Electrical Crimping Butt Connectors: The JRready MiniSeal Crimp Connector Kit, which is smaller and lighter, represents the superior choice for wire connections. These compact and lightweight connectors, when paired with insulation sleeves and heat-shrink sealing, provide outstanding waterproof performance for your wire connection requirements.

Overview

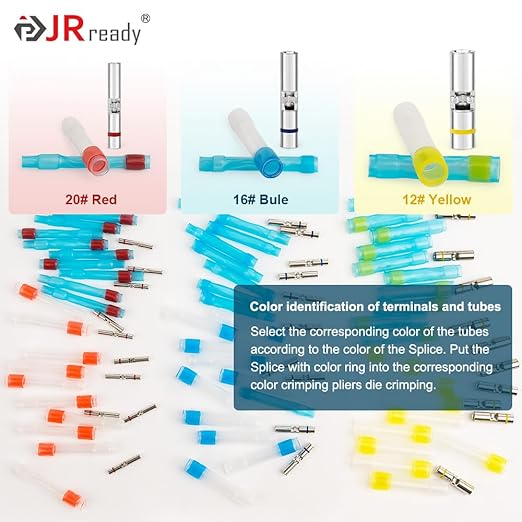

  • Color : 12#Yellow-50Sets
  • Connector Type : Butt Splice, Crimp
  • Contact Material : Copper
  • Insulation Material : Polyethylene
  • Terminal : Butt Terminal
